KZ AM01: KZ's First Portable Decoding Amplifier

High-Performance Independent DAC and Amplifier Chips

Experience Hi-Fi sound quality with the KZ AM01, featuring an independent DAC decoding chip and a secondary independent amplifier chip, delivering 60mW output power for superior audio performance.

☑️ Independent DAC Decoding Chip
☑️ 60mW Output Power
☑️ Secondary Independent Amplifier Chip
☑️ Hi-Fi Sound Quality
☑️ Intelligent Choice for Entry-Level Portable Decoding Amplifier

Dual Independent Chips

Unlike single-chip portable amplifiers and regular adapters, the KZ AM01 offers unparalleled performance with its dual-chip design.

Model	Type-C to 3.5mm	DAC Decoding Chip	Independent Amplifier Chip	Output Power	Price
Ordinary Adapter	No	No	No	5USD	5USD
Mei*u-HA01	Yes	Yes	No	30mW	13USD
Jcally*-m6PRO	Yes	Yes	Yes	60mW	15USD
KZ AM01	Yes	Yes	Yes	60mW	13USD

High-Performance DAC Decoding Chip

The high-performance DAC decoding chip in the KZ AM01 boasts an impressive signal-to-noise ratio of up to 124dB and a dynamic range of 111dB, ensuring precise conversion of digital signals into pure lossless audio quality.

Powerful Amplifier Chip

The MAX97220 independent amplifier chip dynamically adapts to loads within 600Ω, delivering clean and powerful audio output with minimal distortion.

High Processing Power Decoding Chip

With a PCM sampling rate of up to 32-bit/384kHz, the KZ AM01 provides a listening experience that exceeds CD audio quality.

Low Power Consumption

The KZ AM01 has an overall maximum power consumption of 575mW/h, resulting in minimal heat generation and a low impact on your playback device's battery life.

Plug-and-Play Compatibility

Compatible with most Type-C devices, the KZ AM01 is plug-and-play, requiring no complex configurations. Note: Only supports Type-C interfaces with OTG functionality.

Zero Latency

Enjoy perfect audio-visual synchronization while listening to music, watching shows, or playing games with zero latency.

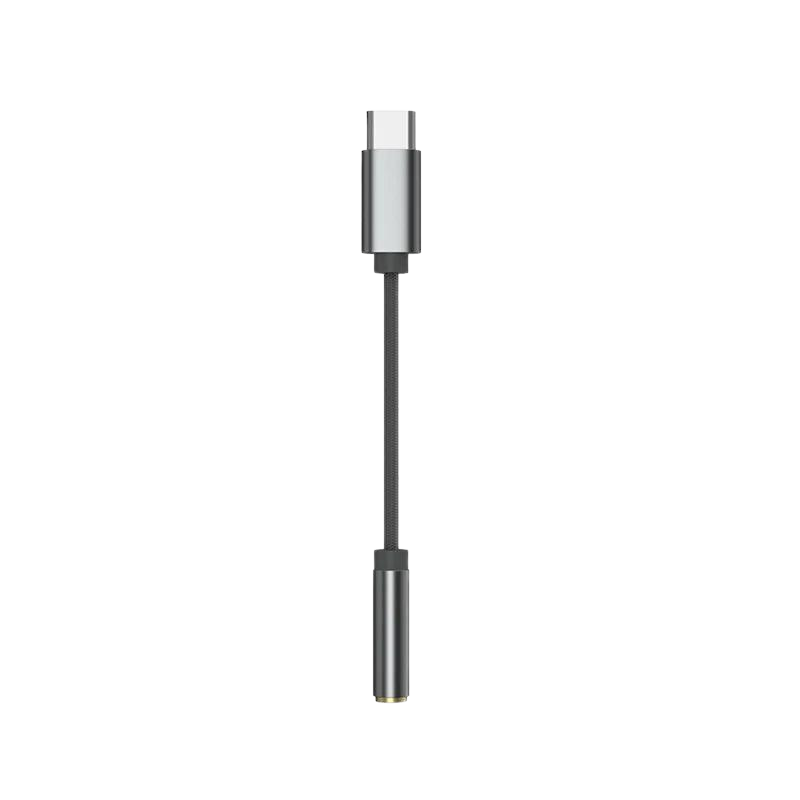

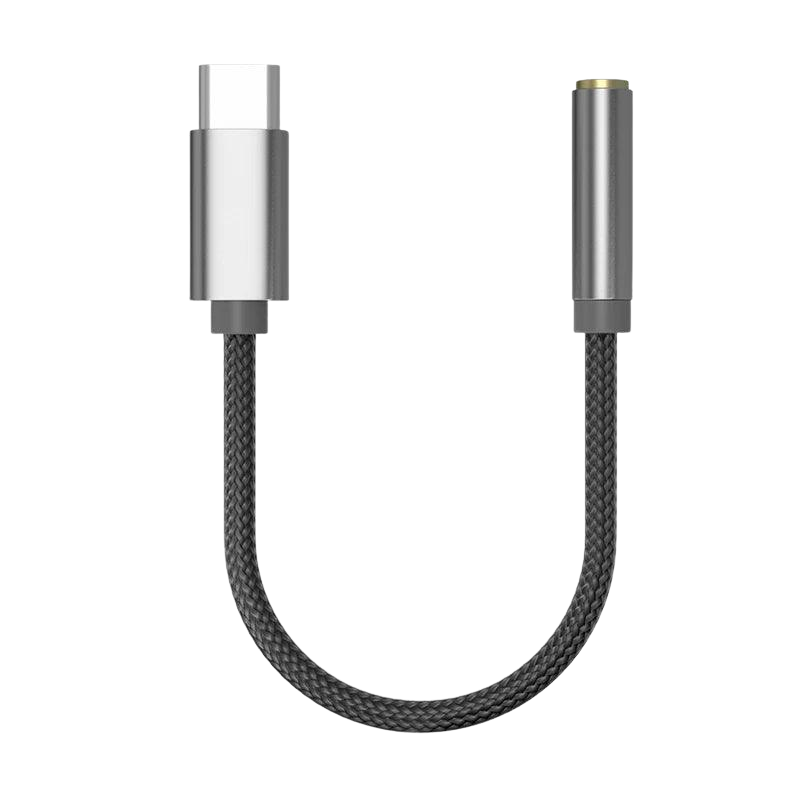

Lightweight and Compact Design

The KZ AM01 features a minimalist design, Kevlar braided cables, and is easy to carry and durable.

Product Information

• Model: KZ AM01
• SNR: 110dB
• DNR: 110dB
• THD+N: -95dB
• Frequency Response: 20-20000Hz
• Impedance Range: ≥16Ω
• Output Power: 1Vrms (30mW@32Ω)
• Input: USB Type-C
• Output: 3.5mm
• Cable Length: 110±10mm
• Decoding Capability: DAC: Up to 384kHz/32bit, ADC: Up to 96kHz/24bit
